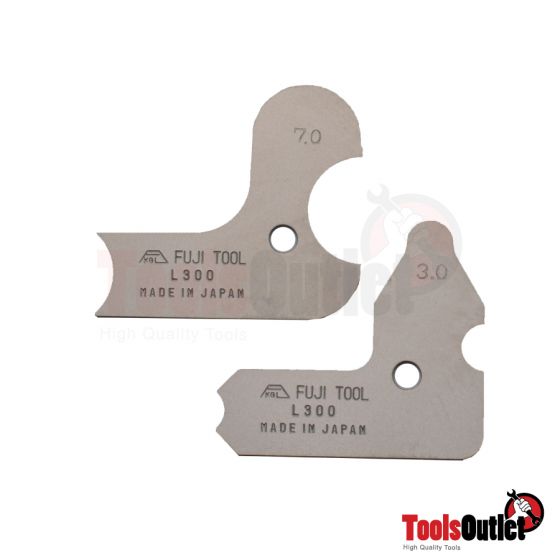

Radius Measuring Gauge เกจวัดรัศมี(แสตนเลส) 12 ใบ/ชุด Fujitool รุ่น L300
Used for checking internal and external radii of tool patterns and other machining jobs.
Individual gauges can be used separately. Each gauge is marked with
Its radius and 5 different gauge surfaces for both convex and concave radii. High precision is guaranteed.
Material : Stainless Steel （0.6ｔ)
Accuracy:
0.2R～25.0R (±0.03mm)
25.5R～50.0R(±0.05mm)
| Code No. | Model No. | Leaves | Size Composition/Contents (mm) |
| 01-201 | L300MA | 14 | 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 |
| 01-202 | L300MB | 12 | 7.5 8.0 8.5 9.0 9.5 10.0 10.5 11.0 11.5 12.0 12.5 13.0 |
| 01-203 | L300MC | 8 | 13.5 14.0 14.5 15.0 15.5 16.0 16.5 17.0 |
ไม่ระบุ
| ยี่ห้อ เครื่องมือวัด | Fujitool |
|---|---|
| BRANDS | FUJITOOL |
